Micro 3D Filament Line

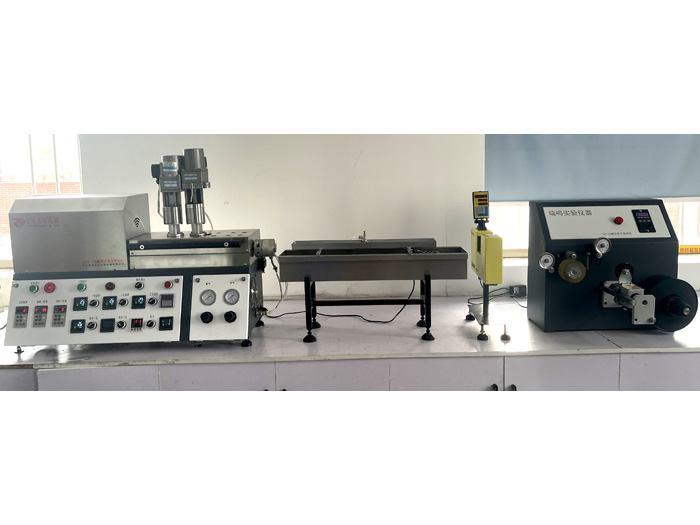

Our Micro 3D Filament Line is a Laboratory scale benchtop mini 3D Printer Filament manufacturing line which can be used to produce 3D Printing Filaments with very small amounts of materials. It is especially ideal for producing 3D Printer Filaments of expensive materials such as some high performance materials including PI, PEI, PPSF, PPSU, PEEK, PEKK, etc., and nano additives filled high performance materials. Our Micro 3D Printing Filament Line includes a Micro Compounder/Twin Screw Extruder, a Micro Air Cooling Conveyor or water cooling trough, a laser diameter gauge, and a Micro Filament Winder.
Features:
Our Micro 3D Printer Filament line is a lab scale small equipment and can be easily placed on a laboratory bench.
Low testing material consumption and low energy consumption, which help to reduce laboratory costs.
Twin screw extrusion to get better material mixing and dispersion than single screw extrusion.
High working temperature and high screw torque make it easy to produce 3D Printer Filaments of high performance materials such as PI, PEI, PPSF, PPSU, PEEK, PEKK, etc., and additives filled high performance materials.
Stable extrusion and drawing to ensure high dimensional accuracy.
Technical Specifications:
Output Capacity: 1kg/h
Dimensional Accuracy: ±0.05mm
