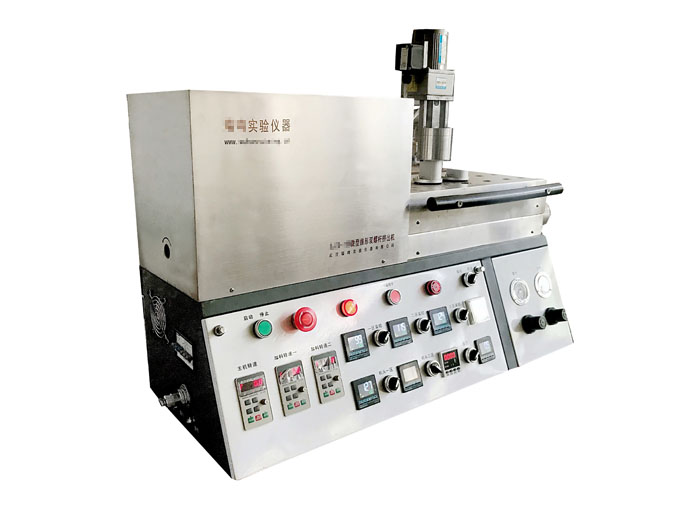

Micro Compounder
Our Micro compounder is a Laboratory scale benchtop mini conical Twin Screw Compounding Extruder which can be used to mix or compound very small amount of testing materials for new materials R&D, and is especially ideal for compounding expensive materials and for performing reactive extrusions. The easy accessibility of the horizontally split, hinged-barrel design lets you easily and conveniently observe the material during the extrusion procedure. With an integrated backflow channel and a bypass valve design, the residence time is well defined. Using the optional force feeder with the Micro Compounder, continuous extrusion with very small volume flows is possible.
Features:
Our Micro Compounders is a small scale equipment and can be easily placed on a laboratory bench;
Low testing material consumption, and low laboratory costs.
Unique back flow channel design in the barrel allows easy and accurate control of the residence time and the plasticizing process of testing materials.
Unique divisible barrel design makes it easy to observe the testing results and to clean the barrels and screws.
Automatic bypass operation for circulation and direct extrusion.
Optional specially designed force feeder can efficiently feed powder and nano materials which usually are difficult to feed due to static sticking effect.
Optional medical grade stainless steel barrel and screws.
Multiple feeding ports, different types of force feeder and the linkage between main motor and feeding motors can efficiently feed different types of materials and help to achieve maximum material mixing and dispersion.
5 heating zones with respective independent temperature control.
High screw torque makes it easy to process high viscosity materials such as rubbers and elastomers.
High working temperature and high screw torque make it easy to process high performance materials such as PI, PEI, PPSF, PPSU, PEEK, PEKK, etc., even ceramic or metal powder filled high performance materials.
Inert gas flush system.
Optional vacuum dehumidification system.
Electric or PLC Touch Screen Control.
Our Micro Lab Compounder Extruder can be conveniently used in combination with our micro injection molding machine to produce tensile bars or specimens for laboratory material testing. The extruded melt material can be directly loaded into the injection barrel of the Micro Injection Molder to conveniently and quickly produce tensile bars or specimens.
Our Micro Lab Compounder Extruder can be used in combination with our other ancillary lab instruments to produce various testing products such as filaments, fibers, pipes, tubes, wire/cable insulation, cable jacketing, coating, sheets, films, pellets, nonwoven fabrics, bottles, profiles, etc. for laboratory material testing.
Technical Specifications:
Maximum Capacity(circulation mode): 15-18g
Maximum Output Capacity(direct extrusion mode): 1kg/h
Main Motor Power: 0.75 kW
Maximum Working Temperature: 450°C
Dimensions: 860×380×580(mm)
